    RoHS Dia. 1-50mm Optical Glass Laser Line Powell Prism

    Ask Lasest Price
    Brand Name : UNIFORM
    Model Number : AUTC-GP-533
    Certification : RoHS, ISO9001, CE, TUV
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 300-500pcs/day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    RoHS Dia. 1-50mm Optical Glass Laser Line Powell Prism

    Dia. 1~50mm Optical Glass Laser Line Powell Prism


    These Laser Line Generator Lenses, also known as Powell lenses, generate a straight, uniform laser line by fanning out a collimated beam in one dimension, as shown in the diagram above. The apex of each lens features an aspheric curve that evenly distributes the optical power, resulting in an intensity variation of less than 25% over the center portion of the line. You will get more even energy distribution along the laser line than using the rod lenses and lenses.

    Specifications

    Material (Substrate) H-K9L ( N-BK7 ), H-ZF7LA ( N-SF6 )

    Diameter φ6,φ9 +0/-0.05 mm (or customized)

    Height 6.5~8.5mm+/-0.05 mm (or customized)

    Fan Angle 8°~110° +/-3% deg

    Energy Uniformity <20% (central 80% of line.)

    Straightness of line <0.1%

    Apex Offset <0.02mm

    Wavelength Range 400nm-1100nm

    Clear Aperture ≥90%

    Input Beam Size Dia. 0.5-5mm

    Scratch and Dig (S/D) 60/40 40/20

    Coating Uncoated, AR, BBAR, Reflective

    RoHS Compliant

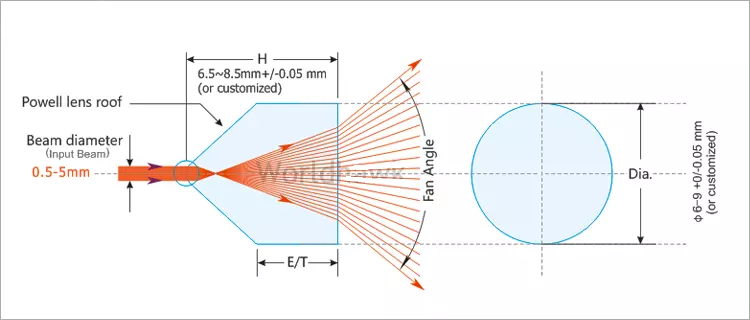

    Technical Drawings

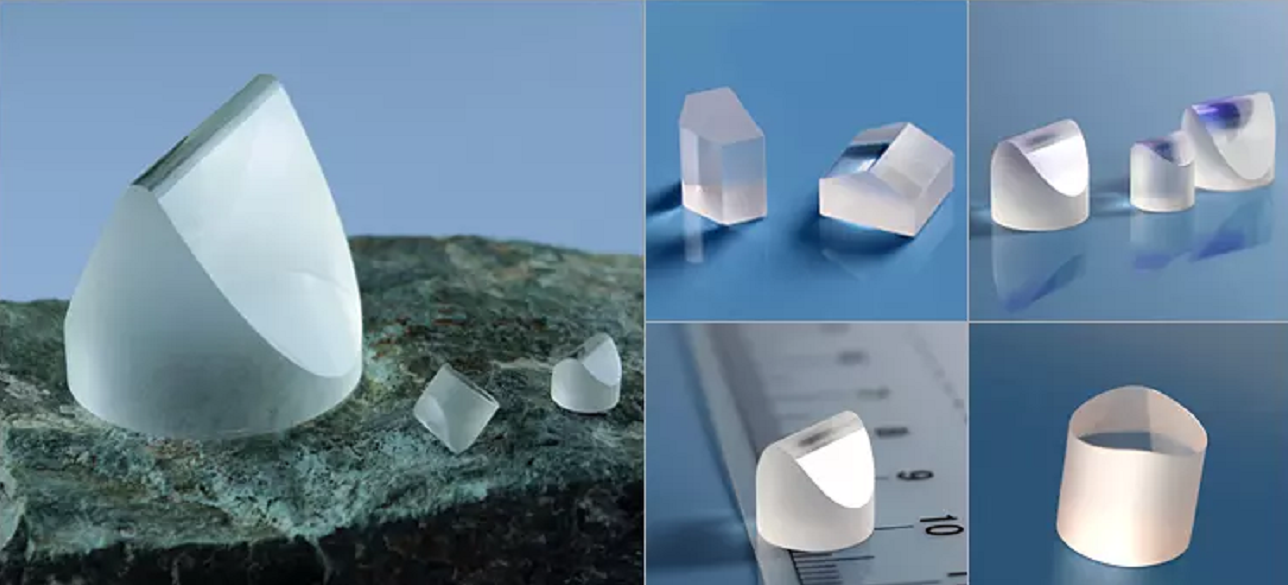

    Different Powell Lenses
